CAN Gateway (galvanically isolated)

Isolated CAN gateway — CAN2 galvanically isolated, custom firmware to order.

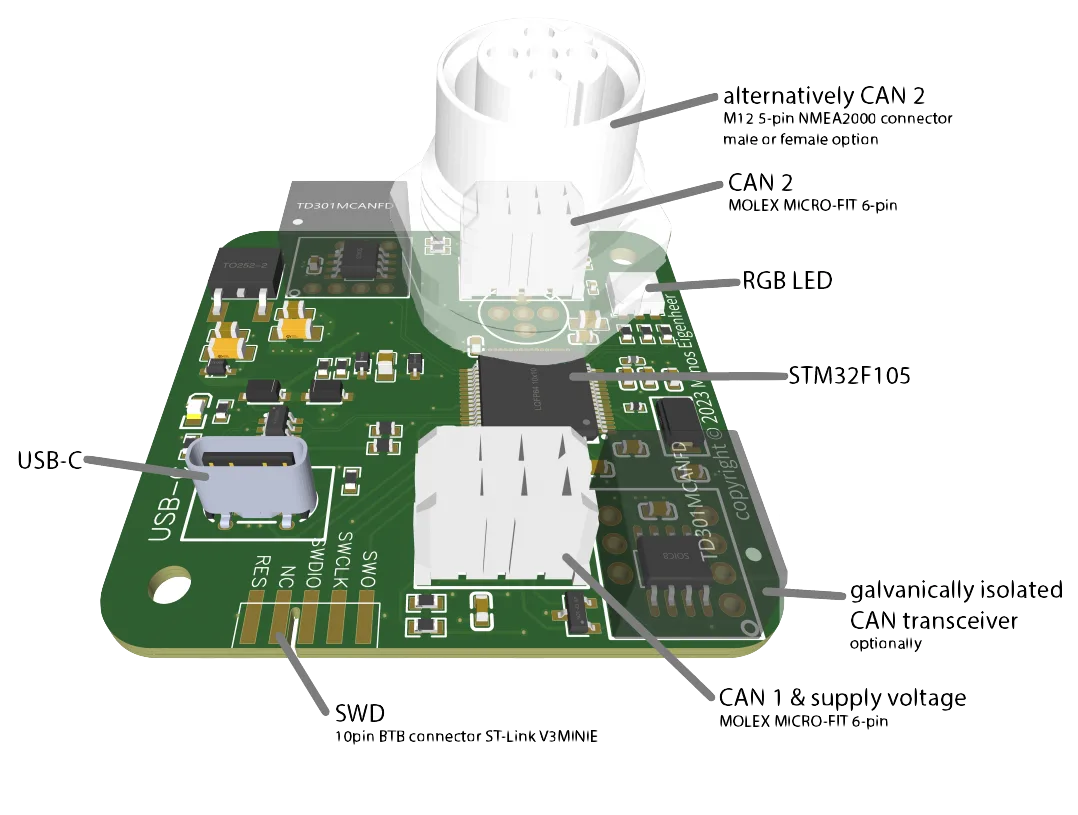

A galvanically isolated CAN gateway with two independent CAN channels — CAN1 for the BMS and CAN2 galvanically isolated — a 4–32 V supply, two analog inputs, an RGB status LED and USB-C for firmware updates. CAN2 ships either as a 6-pin micro-fit or a 5-pin NMEA2000 M12 connector — pick the connector and firmware build at checkout. The isolated CAN2 breaks ground loops between the two buses, e.g. when bridging onto an external or marine network. Same firmware builds as the standard gateway; other CAN protocols possible on request. It ships in a 3D-printed housing with mounting flanges — sturdy and vibration-friendly, but not waterproof, so mount it in a dry, enclosed spot. Supplied as a development / evaluation kit for professional builders — not a CE-marked consumer product.

• ✓Two independent CAN channels (CAN1 BMS, CAN2 galvanically isolated)
• ✓Galvanically isolated CAN2 transceiver — breaks ground loops
• ✓Baudrate 125, 250, 500 and 1000 kbit/s
• ✓4–32 V supply voltage for 12 or 24 V systems
• ✓Two analog inputs & RGB status LED
• ✓USB-C for firmware updates

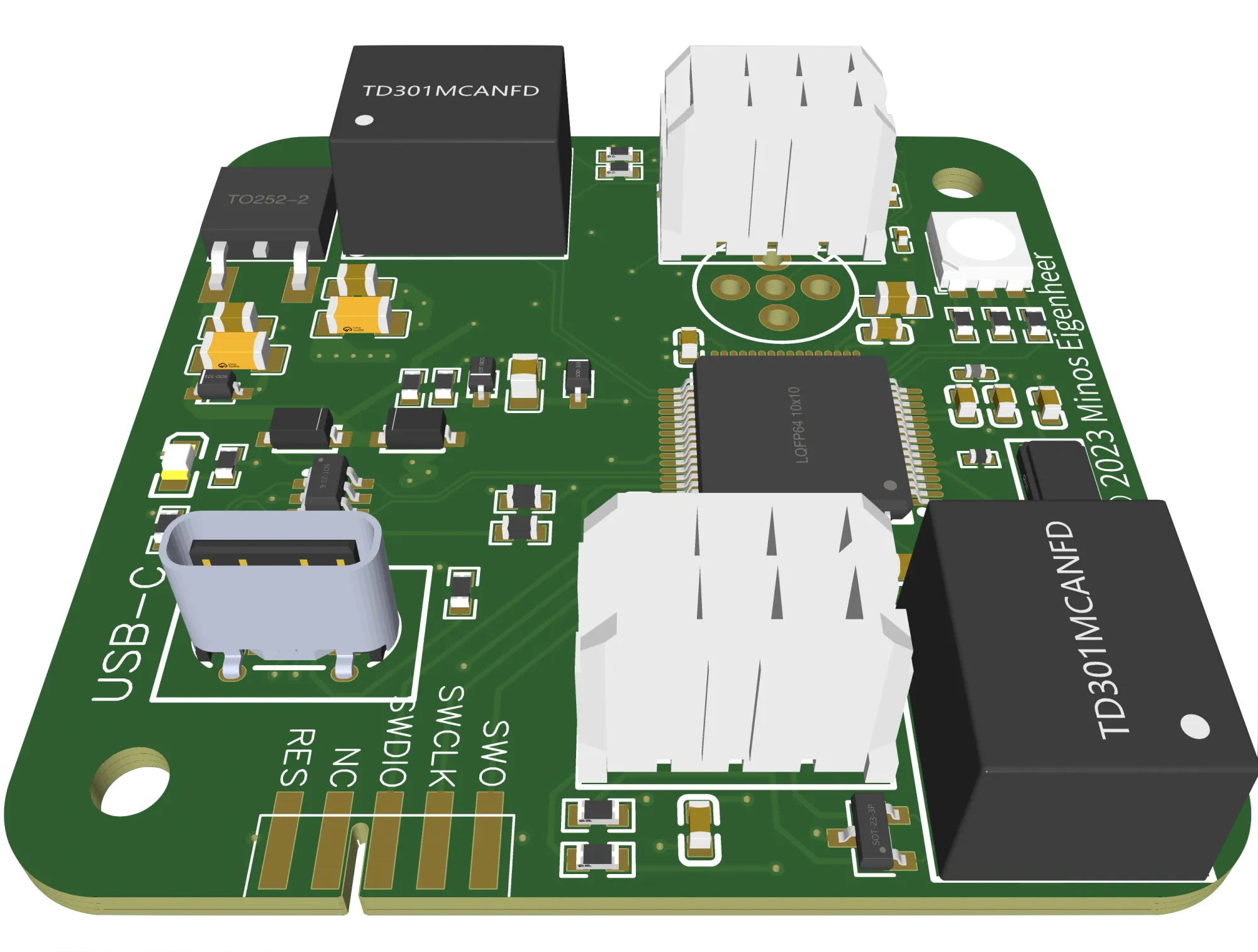

• ✓CAN1: 6-pin micro-fit connector

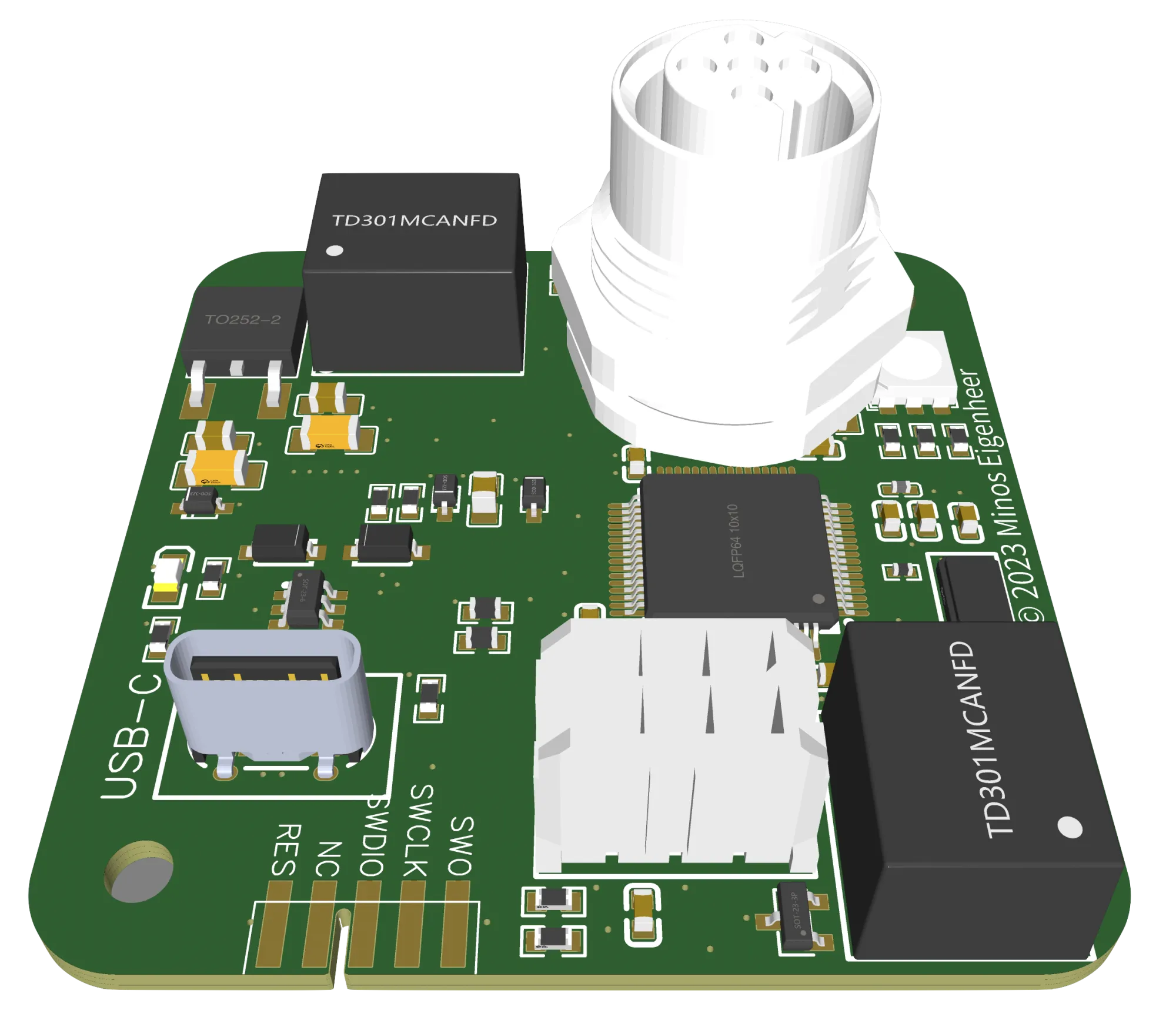

• ✓CAN2: 6-pin micro-fit or NMEA2000 M12 5-pin connector

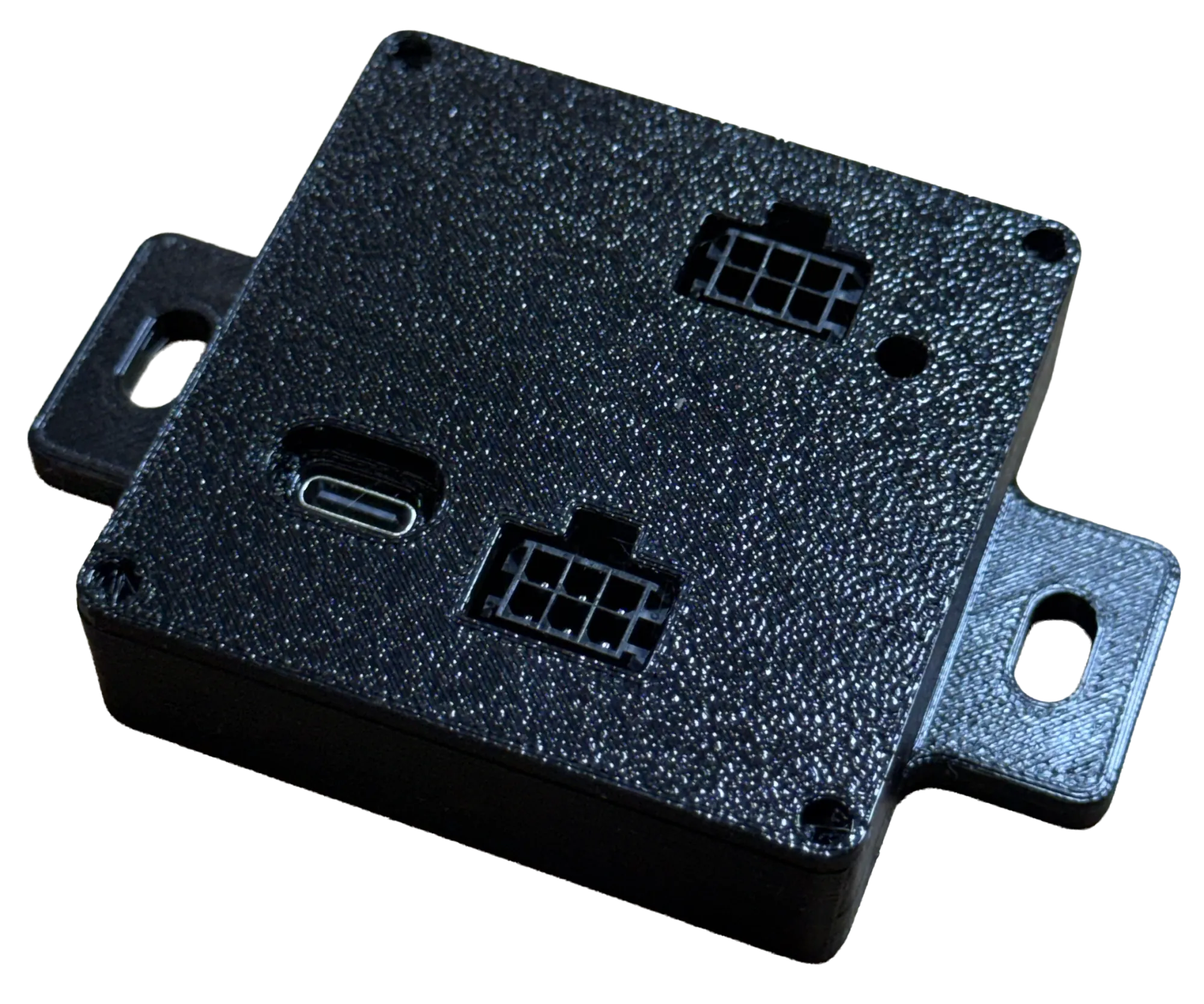

• ✓3D-printed housing with mounting flanges — not waterproof

Custom firmware only. Tell us which firmware build, CAN2 connector and baud rate you need at checkout (or open a support ticket) — we flash and assemble it before shipping. Development / evaluation kit, not CE-marked.
