CAN Gateway
CAN gateway — custom firmware to order.
A simple CAN gateway with two independent CAN channels (CAN1 for the BMS, CAN2 external), a 4–32 V supply, two analog inputs, an RGB status LED and USB-C for firmware updates. The CAN Gateway is available with a variety of firmwares — pick the build and CAN bus speeds below.Other CAN protocols are possible on request (choose "Custom firmware"). It ships in a 3D-printed housing with mounting flanges — sturdy and vibration-friendly, but not waterproof, so mount it in a dry, enclosed spot. Supplied as a development / evaluation kit for professional builders — not a CE-marked consumer product.
- ✓Two independent CAN channels (CAN1 BMS, CAN2 external)
- ✓Baudrate 125, 250, 500 and 1000 kbit/s
- ✓4–32 V supply voltage for 12 or 24 V systems
- ✓Two analog inputs & RGB status LED
- ✓USB-C for firmware updates
- ✓6-pin micro-fit connectors
- ✓3D-printed housing with mounting flanges — not waterproof
Available firmware builds
- ›EMUS BMS → Speedhut (gauges)
- ›EMUS BMS → T2C (Tesla drive unit)
- ›EMUS BMS → Bidirectional TC charger
- ›CAN isolator / filter
- ›EMUS BMS → Victron HV BMS (for HS19 / Cerbo)
- ›EMUS BMS → Victron BMS (for LV Cerbo)
Custom firmware only — select your firmware build and CAN bus speeds below (or open a support ticket). We flash it before shipping. Development / evaluation kit, not CE-marked.
Ordering several with different firmware? Add one, adjust the options, and add again — each becomes its own line.

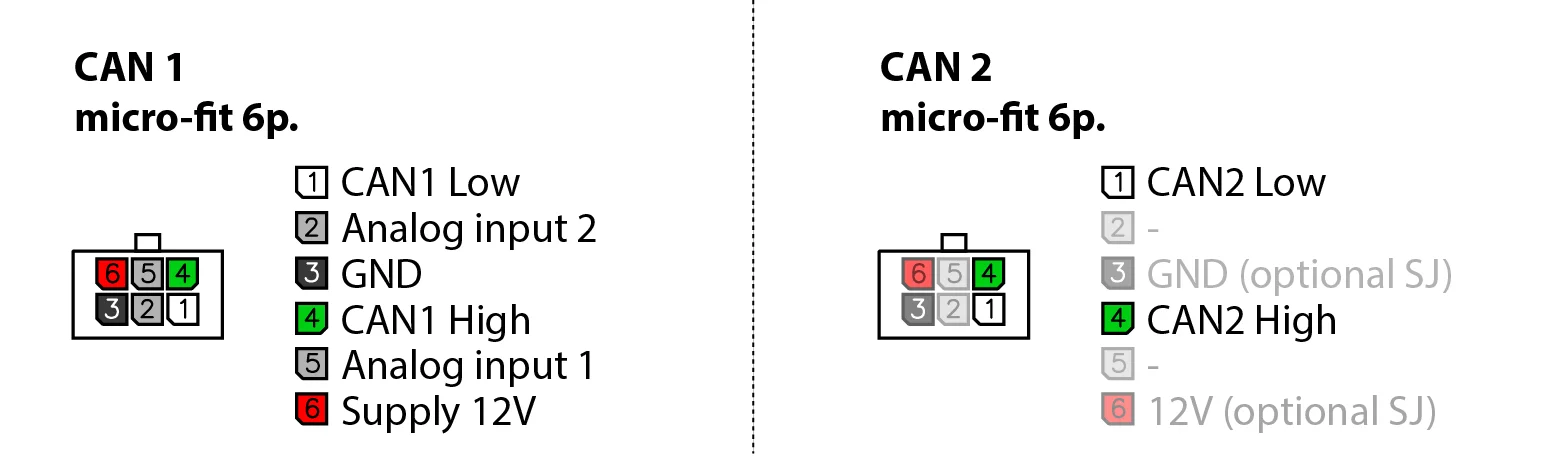

Diagrams & connectors
